Metal vs. Plastic Inline Duct Fans: How to Choose for Your Project

Inline duct fans are widely used in residential buildings, commercial facilities and auxiliary industrial ventilation systems. Installed directly within the ductwork, they support supply air, exhaust air, local ventilation and equipment cooling.

One of the most visible differences between fan models is the housing material. Some use engineering plastics, while others are manufactured from galvanized or coated steel. From an engineering perspective, however, housing material alone does not determine fan performance.

The main differences between metal and plastic housings relate to structural rigidity, weight, corrosion resistance, temperature capability and maintenance requirements. A suitable selection must also take into account the required airflow, system resistance, air characteristics, acoustic limits and control strategy.

Housing material is only one part of the fan design

Plastic inline duct fans commonly use polypropylene or other engineering plastics for the housing, airflow guides and connection spigots. The motor, bearings, fasteners and supporting components may still be made of metal.

Metal duct fans are generally constructed with galvanized or coated steel housings. Their impellers may be made from metal or engineering plastic, depending on the design.

The terms “metal fan” and “plastic fan” therefore refer mainly to the housing or primary structural material. They do not imply that the impeller, motor and control system use the same material configuration.

Within Blauberg’s inline duct fan range, for example, some mixed-flow models combine a plastic inner housing with a steel acoustic casing, while certain box-type models use galvanized steel housings, backward-curved centrifugal impellers and EC motors. These material combinations are selected to address specific requirements for pressure performance, acoustic treatment, installation and maintenance.

Aerodynamic selection should be based on the operating point

Inline duct fan selection begins with two parameters: the required airflow and the system resistance.

The maximum airflow shown in a product catalogue is generally measured under low-resistance conditions. Once the fan is connected to an actual duct system, it must overcome pressure losses generated by straight duct sections, bends, transitions, dampers, filters, grilles and heat exchangers.

For a conventional ventilation system, resistance can be approximated as:

Δp = KQ²

where Δp is the pressure loss, Q is the airflow rate and K represents the combined resistance of the ductwork and its components.

The point at which the fan performance curve intersects the system resistance curve is the actual operating point. Two fans with similar connection sizes and nominal maximum airflow may therefore deliver different airflow rates when installed in the same system.

Impeller type, blade geometry, impeller diameter, rotational speed and internal airflow guidance all influence the pressure–airflow characteristic.

Axial or mixed-flow fans may be suitable for short duct runs with limited resistance. For longer duct systems, multiple filters or higher static-pressure requirements, mixed-flow or centrifugal designs should be evaluated against their complete performance curves. Maximum airflow alone does not provide a reliable indication of installed performance

Engineering characteristics and limitations of plastic housings

Engineering plastics can be injection-moulded into complex airflow guides, reinforcing ribs and connection structures. This allows several functions to be integrated into the housing while reducing the number of separate components and maintaining consistent internal geometry.

Plastic housings are also relatively lightweight. This can reduce the load placed on suspended ceilings, mounting brackets and duct connections, making them suitable for compact circular duct systems with limited installation space.

Unlike unprotected carbon steel, plastic does not undergo conventional electrochemical corrosion. Plastic inline fans are therefore commonly used for bathroom exhaust, residential fresh-air systems, storage-room ventilation and general equipment cooling.

However, resistance to rust should not be confused with universal resistance to corrosive environments. Different polymers respond differently to high temperatures, ultraviolet exposure, oil mist, solvents, acids and alkaline substances.

Under prolonged heat or continuous mechanical load, some plastics may also experience creep, resulting in gradual deformation or dimensional change.

Selection should therefore consider:

● The exact housing and impeller material

● Permissible ambient and air-stream temperatures

● Material flammability classification

● Chemical compatibility

● Installation orientation

● Support and fastening requirements

A low-flammability material classification describes material behaviour under defined test conditions. It does not replace whole-product approval for high-temperature operation or smoke-extraction duty.

Structural characteristics and corrosion considerations of metal housings

Metal housings offer relatively high structural rigidity and are well suited to flanged connections, access panels, support frames and larger enclosure designs.

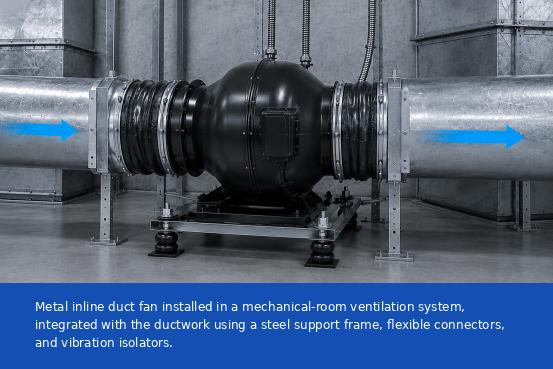

For rectangular duct systems, higher-airflow applications or mechanical rooms requiring regular inspection, metal housings can be integrated more readily with ductwork, vibration isolation and maintenance access.

Metal casings can also incorporate perforated panels, mineral wool or other acoustic materials to reduce noise radiated through the housing. The resulting acoustic performance depends on the combined design of the impeller, airflow path, casing and sound-absorbing structure. It should not be assumed that a metal fan is inherently quieter.

Galvanized steel provides a degree of surface protection, but cut edges, welds, fixing holes and damaged coatings may still become corrosion initiation points. In humid, saline or chemically aggressive environments, the coating system and maintenance interval should be assessed in relation to the expected corrosion category.

When cold air is transported, the metal housing may fall below the surrounding air’s dew point and develop surface condensation. Thermal insulation, vapour control and condensate management may therefore be required.

Fire safety, high-temperature capability and noise must be assessed at product level

A standard metal inline fan is not automatically suitable for high-temperature smoke extraction.

High-temperature performance depends on more than the casing material. The impeller, motor insulation, bearing lubrication, cables, seals, electronic controls and mounting structure must all remain functional under the specified temperature and operating duration.

Similarly, a plastic fan cannot be assessed for fire-related applications solely on the basis of the material’s flammability rating.

Smoke extraction, commercial kitchen ventilation, drying equipment and high-temperature process exhaust systems require purpose-designed products. Selection should be based on air temperature, exposure duration, contaminant type, project specifications and the relevant test documentation for the specific model.

Housing material may be used as an initial screening factor, but it cannot replace whole-product testing and certification.

Fan noise should also be evaluated as a system characteristic. Typical sources include impeller rotation, motor operation, airflow separation and structure-borne transmission.

When comparing acoustic data, it is important to distinguish between sound power level and sound pressure level. Test distance, fan speed, airflow, static pressure and installation conditions must also be consistent.

An inlet located immediately after a bend, an abrupt transition, undersized ductwork or the absence of flexible connectors can increase noise at the installation site.

For meeting rooms, classrooms, hotel rooms and other acoustically sensitive spaces, the fan, duct velocity, silencers, flexible connections, vibration isolators and installation position should be considered as one integrated system.

EC control should be treated as a separate selection criterion

EC motor technology is available with both plastic and metal inline duct fans. Its main engineering value lies in speed control and system connectivity rather than housing material.

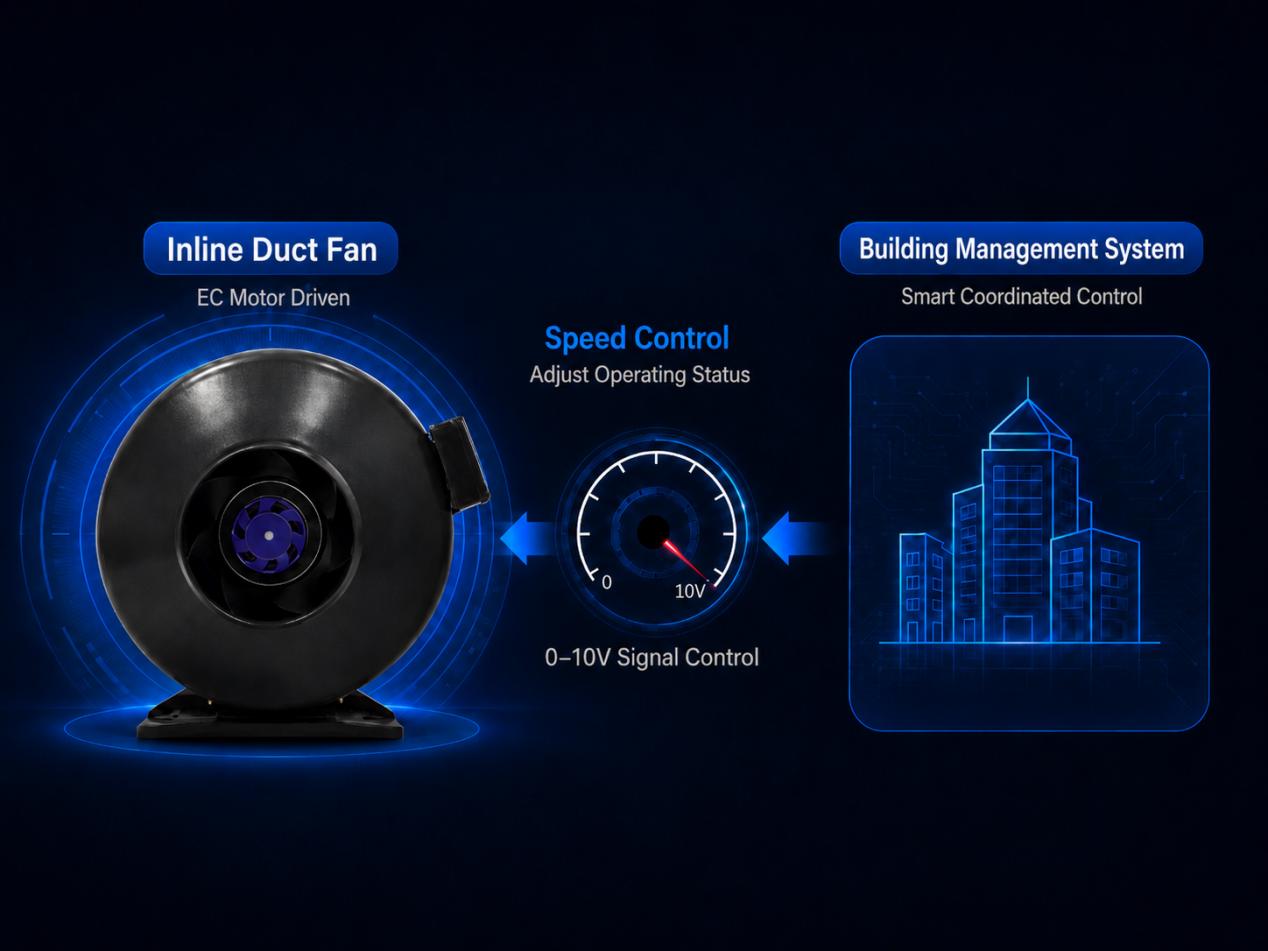

Depending on the model, an EC fan may accept a 0–10 V control signal and connect to temperature, pressure or indoor-air-quality sensors, as well as a building management system. This allows fan speed to be adjusted in response to actual ventilation demand.

Under geometrically similar conditions and approximately constant air density:

● Airflow is approximately proportional to rotational speed

● Pressure is approximately proportional to the square of rotational speed

● Shaft power is approximately proportional to the cube of rotational speed

Actual electrical input, however, also depends on motor efficiency, controller losses, system operating point and the duration of operation at each speed. A single energy-saving percentage should therefore not be applied without reference to a defined system and operating profile.

For applications with variable loads, EC control provides a technical basis for demand-controlled ventilation and system regulation. Selection should also confirm the required control signal, communication protocol, protection functions, minimum stable speed and compatibility with sensors or building automation systems.

Conclusion

Plastic inline duct fans offer advantages in weight, component integration and resistance to conventional rust. They are well suited to systems with clearly defined air conditions, stable temperatures and restricted installation space.

Metal inline duct fans provide greater flexibility for structural reinforcement, flanged connections, acoustic enclosures and maintenance access. They are commonly considered for larger systems, higher duct resistance or projects with more demanding structural and service requirements.

A sound selection process should establish the required airflow and static pressure first, followed by the air characteristics, temperature range, material compatibility, available installation space, acoustic limits, fire requirements and control strategy.

The final decision should be based on the performance curves, technical specifications and test documentation of the specific fan model.

There is no universal advantage of metal over plastic, or plastic over metal, when the operating conditions are not defined. A meaningful engineering comparison must consider the housing material together with the impeller design, motor configuration, system resistance and operating environment.
