Metal vs Plastic Impellers in Centrifugal Fans: Fire Safety, Strength & Performance

When selecting a centrifugal fan, airflow, static pressure, efficiency and noise are usually the first parameters considered. Impeller material, however, is often reduced to a simple assumption: metal is stronger, while plastic is lighter.

In practice, impeller material affects structural strength, dimensional stability, manufacturing methods and environmental suitability. It should not be evaluated independently of blade geometry, impeller diameter, operating speed or temperature.

In this article, metal impellers mainly refer to the steel, aluminum-alloy and stainless-steel impellers commonly used in industrial centrifugal fans. Plastic impellers mainly refer to components made from glass-fiber-reinforced engineering plastics such as PA6-GF. Performance can vary significantly according to material grade, glass-fiber content and structural design. Final selection should therefore be based on the technical documentation and test results for the specific fan model.

Comparison of the structural and material characteristics of metal and engineering-plastic centrifugal impellers

Fire Safety: Material Properties Are Not the Same as Whole-Fan Fire Resistance

Under normal fan operating conditions, steel and aluminum-alloy impellers do not exhibit the softening and dripping behavior associated with thermoplastics. Their metallic base materials also do not produce smoke through the thermal decomposition of a polymer matrix.

Metal impellers can therefore offer a material-level advantage in applications where combustible materials are restricted, or where smoke generation and molten dripping are particular concerns.

A metal impeller, however, should not automatically be regarded as suitable for smoke extraction. At elevated temperatures, the mechanical strength of steel and aluminum alloys may decrease, and thermal deformation may occur. Surface coatings, motor insulation, bearing lubricants, cables and electronic controls must also be assessed for high-temperature operation.

Some engineering plastics can be compounded with flame retardants to achieve specified flammability ratings. These ratings describe how a standardized material specimen performs under defined test conditions. They do not, on their own, demonstrate that the complete fan is suitable for smoke extraction or has achieved a particular fire-resistance classification.

For smoke extraction, high-temperature air handling or applications with defined fire-resistance requirements, suitability should be determined through whole-fan testing at the specified temperature and duration, rather than by impeller material alone.

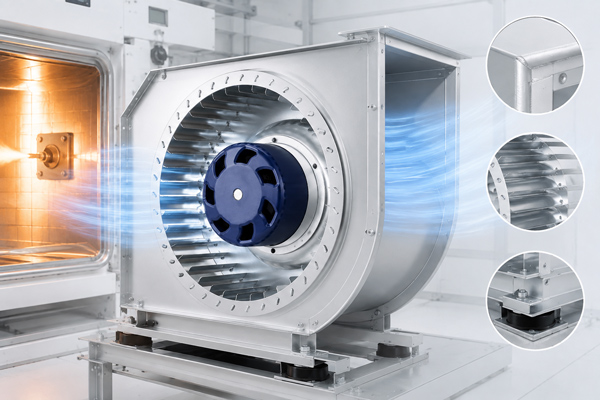

The fire safety and structural reliability of a metal impeller must be verified together with the complete fan under defined high-temperature test conditions

Structural Strength: Focus on Allowable Tip Speed and Long-Term Stability

At comparable temperatures and with appropriate structural design, metals generally offer a higher elastic modulus and better dimensional stability. This can provide greater design flexibility for larger impellers, higher allowable tip speeds and greater centrifugal loads.

Even so, the reliability of a metal impeller is not determined by material strength alone. Stamping, bending and welding may introduce local deformation or residual stress. Blade attachment points, weld quality and balancing accuracy can all affect long-term operation.

For high-speed impellers, structural safety margins may also need to be assessed through finite-element analysis, overspeed testing and fatigue validation.

Plastic impellers are commonly manufactured from glass-fiber-reinforced engineering plastics such as PA6-GF. Glass fibers can improve stiffness and mechanical strength, but actual performance depends on fiber content, fiber orientation, wall-thickness design, ambient humidity and molding conditions.

Injection molding allows blades, backplates and connecting structures to be formed as a single component, making complex three-dimensional blade geometries easier to produce. At the same time, designers must control molding shrinkage, warpage and anisotropic behavior caused by fiber orientation.

For impellers operating continuously at elevated temperatures or under sustained mechanical loads, creep and long-term material aging must also be considered.

Aerodynamic Performance: Blade Design Matters More Than Material Choice

The aerodynamic efficiency of a centrifugal fan is not determined directly by whether the impeller is made from metal or plastic.

Blade curvature, impeller diameter, blade count, inlet geometry, volute or airflow-path matching, and the clearance between the impeller inlet and inlet cone all influence flow separation, recirculation losses and pressure development.

Injection molding is well suited to complex surfaces and smooth geometric transitions. When tooling, material and processing conditions are stable, it can also provide consistent geometry across large production volumes. For this reason, molded plastic impellers are widely used in small and medium-sizedproduced in larger quantities.

Advances in metal forming and joining technologies have also made three-dimensional blade designs possible in metal impellers. Some product generations have improved efficiency, allowable speed and acoustic performance through optimized blade profiles, inlet matching and stress distribution.

These results, however, are usually associated with the development of specific products. They should not be interpreted as evidence that metal impellers are universally more efficient than plastic alternatives.

The two options should be compared under the same test standard and operating conditions, using airflow–static pressure curves, total or static efficiency, input power and sound power data.

Impeller material should be matched with the motor, airflow path, heat-exchange components and actual operating conditions

Noise and Vibration: Material Alone Does Not Determine Acoustic Performance

Engineering plastics generally provide greater material damping, while metals usually offer a higher elastic modulus. These characteristics can influence structural behavior, but neither directly determines the overall noise level of a fan.

The acoustic performance of a centrifugal fan is also affected by blade-pass frequency, flow separation, impeller balance, installation stiffness, structural modes and the selected operating point.

When a fan operates close to stall or near a structural resonance speed, noise and vibration may increase significantly even when the impeller material remains unchanged.

Statements such as “plastic impellers are always quieter” or “metal impellers are always more stable” are therefore too broad. Low-noise selection should be based on sound power data at the specified operating point, together with the operating-speed range and the airflow path inside the equipment.

Corrosion Resistance and Environmental Compatibility: Verify Material Suitability Case by Case

Plastic impellers do not suffer from conventional metallic oxidation or rust and generally require no additional anti-corrosion coating in ordinary humid environments.

However, plastic is not resistant to every medium. Oil mist, solvents, cleaning chemicals, ultraviolet exposure, high temperatures and high humidity can all affect material properties.

Metal impellers can be manufactured from galvanized steel, coated steel, aluminum alloy or stainless steel, depending on the operating environment. Corrosion resistance varies substantially between different metal grades and surface treatments.

Where salt spray, chemical gases or condensate may be present, material selection should be based on the actual medium and verified accordingly.

Manufacturing Cost: Production Volume and Size Determine Overall Value

Plastic impellers usually require a relatively high initial investment in injection-molding tools. Once stable mass production has been established, however, they can offer short molding cycles, fewer individual parts and good batch-to-batch consistency. This makes them well suited to small and medium-sized products manufactured in larger volumes.

Metal impellers may require cutting, forming, welding, surface treatment and balancing. Although this involves more individual processing steps, metal construction often provides greater flexibility for large impellers, special dimensions and low-volume customized projects.

Cost comparisons should therefore extend beyond the purchase price of a single impeller. Tooling investment, production volume, transport weight, maintenance conditions and expected service life should all be considered.

Selection Must Begin with the Actual Operating Conditions

When selecting an impeller material for a centrifugal fan, engineers should verify several key conditions:

Does the applicable equipment standard restrict combustible materials? What are the ambient temperature and conveyed-air temperature? What are the maximum operating speed and allowable impeller tip speed? Does the airstream contain moisture, salt spray, oil mist, dust or chemical substances? Will the fan operate continuously? What safety tests and market-access requirements must the complete fan satisfy?

Across its centrifugal fan range, Blauberg uses different impeller materials according to impeller diameter, operating speed and application environment. Model-specific documentation identifies parameters such as impeller material, motor protection, control options and performance data.

Some models use PA6-GF impellers, while others use metal impellers. The exact configuration and scope of protection should always be confirmed in the technical specification for the relevant model.

This product-development approach reflects an important principle: impeller material should be treated as one element of system selection and evaluated together with the motor, operating speed, airflow path, control method and application environment.

Metal impellers are often worth considering where equipment standards restrict combustible materials, where tip speeds are relatively high, or where dimensional stability is a priority.

Engineering-plastic impellers may be suitable where weight reduction, complex molded blade geometry and production consistency are important.

The comparison should not be viewed as a contest between a “higher-grade” and a “lower-grade” material. The better choice is the impeller that suits the operating conditions, has been properly validated and is correctly matched to the complete fan system.
