Inline Duct Fans for Residential and Commercial Ventilation: Better Indoor Air Quality and Lower Energy Use

Airtight Buildings Need Well-Designed Ventilation

As buildings become better insulated, quieter, and more airtight, less air is exchanged naturally through gaps around windows and doors. In homes, moisture, odors, and carbon dioxide may build up in bathrooms, walk-in closets, and storage rooms. Similar issues can occur in offices, meeting rooms, retail spaces, and service rooms as a result of occupancy and everyday activities.

Improving indoor air quality cannot depend solely on opening windows or running fans continuously at high speed. Natural ventilation is affected by outdoor weather, noise, and air quality, while excessive mechanical ventilation may increase electricity consumption, system noise, and heating or cooling loads.

A more practical approach is to establish a stable and controllable airflow path based on the function of each space and its actual ventilation demand.

Inline duct fans are installed within ductwork and can be used for supply air, extract air, or general air movement. They can be connected to one or more air terminals and installed above suspended ceilings, in service areas, or in other concealed locations. This makes them suitable for centralized residential extract systems and small to medium-sized commercial ventilation applications.

It is important to note that an inline duct fan is only the air-moving component of a ventilation system. Indoor air quality also depends on the position of outdoor air inlets and exhaust points, supply and extract airflow rates, airflow direction, filtration, and regular maintenance. Installing an extract fan alone is not the same as providing a complete mechanical ventilation system with outdoor air supply.

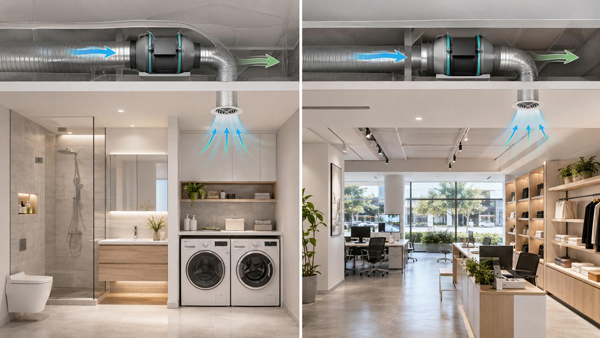

Residential and Commercial Inline Duct Ventilation Applications

Actual Airflow Depends on System Resistance

The maximum airflow stated on a fan nameplate or in product documentation is normally measured under specified test conditions. It does not necessarily represent the actual airflow after the fan is connected to a duct system.

As air moves through ductwork, it must overcome resistance created by duct length, elbows, transitions, dampers, grilles, filters, silencers, and other components. As system resistance increases, the actual operating point may move further away from the published maximum airflow.

For this reason, an inline duct fan should not be selected solely by its connection diameter or maximum airflow rating. The required design airflow, total system pressure loss, and the fan performance curve should all be considered.

Common inline duct fan designs include mixed-flow and centrifugal configurations. Mixed-flow fans generally combine useful airflow and pressure capability in a compact design, making them suitable for many circular duct systems with moderate resistance.

Centrifugal inline fans typically provide greater pressure capability and are often better suited to longer duct runs, systems with multiple bends, or applications that include filters and other resistance-producing components. The final selection should always be based on the required operating point rather than the fan type alone.

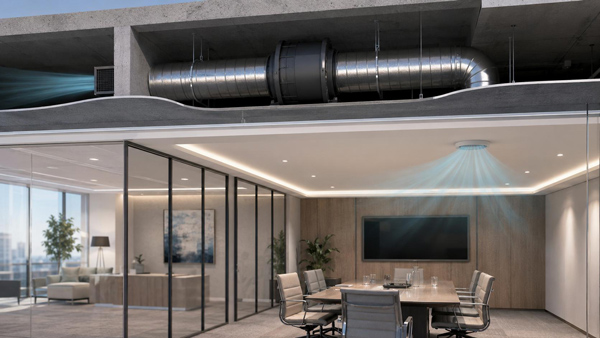

Inline Duct Fan Design and Airflow

Blauberg’s inline duct fan range covers both circular and rectangular duct systems, with mixed-flow, centrifugal, EC-driven, and acoustically insulated configurations available. These options allow the fan to be matched to project requirements for airflow, static pressure, installation space, and control.

Ventilation Requirements Vary by Application

In residential buildings, inline duct fans can be used for bathroom extract, moisture removal, and the ventilation of walk-in closets and storage rooms. A single fan may also serve several bathrooms or auxiliary spaces as part of a centralized extract system.

Residential applications usually place greater emphasis on nighttime noise, compact installation, low-airflow operation, and convenient maintenance access.

In kitchens, general room ventilation must be distinguished from grease-laden cooking exhaust. Standard inline fans intended for comfort ventilation should not be used directly for airstreams containing grease, elevated temperatures, or highly corrosive substances.

Where grease, high temperatures, or corrosive gases are present, the fan, ductwork, and cleaning and maintenance strategy must be selected specifically for those operating conditions.

Commercial buildings often experience wider variations in occupancy and operating hours. Offices and meeting rooms may require ventilation rates that respond to the number of occupants. Retail stores and training spaces need to accommodate changing visitor levels, while washrooms, stockrooms, and service rooms may require continuous extract or odor control.

Standard comfort-ventilation products should not be applied directly to industrial dust, flammable or explosive atmospheres, high-temperature air, or highly corrosive airstreams. Such applications require equipment selected according to the characteristics of the conveyed air, applicable safety requirements, and the necessary protection rating.

EC Speed Control Supports Demand-Controlled Ventilation

Traditional duct fans often operate at a fixed speed or with only a limited number of speed settings. When ventilation demand is low, maintaining a high airflow may waste electricity and increase heating or cooling losses. When occupancy or humidity rises, a fixed airflow may no longer be sufficient.

EC motors use electronic commutation and allow fan speed to be adjusted in response to a control signal. When the fan and control system are properly selected, airflow can be reduced during low-demand periods and increased when ventilation demand rises.

When humidity, carbon dioxide, or other indoor air quality sensors are integrated into the system, fan speed can be adjusted according to predefined setpoints. For example, extract airflow can increase when bathroom humidity rises, ventilation can be boosted as more people enter a meeting room, and airflow can be reduced during unoccupied periods.

The purpose of demand-controlled ventilation is not to operate the fan continuously at full speed, but to provide the required airflow while avoiding unnecessary overventilation.

Constant-airflow or constant-pressure operation also requires suitable sensors, controllers, and control logic. These functions cannot be achieved simply by using an EC motor. EC technology provides the basis for continuous speed control, but the overall energy performance of the system still depends on the fan operating point, duct resistance, control strategy, and operating hours.

Low-Noise Operation Depends on the Whole System

Installing an inline duct fan away from occupied areas can reduce the direct impact of fan noise, but it does not guarantee a quiet ventilation system.

Actual sound levels are also affected by fan speed, operating point, duct dimensions, air velocity, bend locations, structural vibration, and the design of grilles and diffusers.

Undersized ducts, excessive air velocity, sharp bends close to the fan inlet or outlet, and abrupt changes in duct cross-section can all generate additional aerodynamic noise. An oversized fan that is heavily throttled with dampers may also create unnecessary energy consumption and noise.

During installation, the inlet and outlet conditions recommended by the manufacturer should be maintained wherever possible. The fan should be securely supported, with vibration-isolating connections used where necessary. Adequate access should also be provided for cleaning, inspection, and component replacement.

In systems located close to bedrooms, hotel rooms, or office areas, acoustically insulated fan housings or silencers may be used where appropriate. However, these measures cannot compensate for incorrect airflow calculations or unsuitable duct sizing.

Moving from Fan Selection to System Matching

Inline duct fans provide a flexible solution for moving air through residential and commercial buildings, but ventilation performance is not determined by the fan alone.

The design process should begin by defining the function of the space and its ventilation requirements. The duct-system resistance can then be calculated so that the required airflow, static pressure, acoustic performance, and control method can be specified.

For applications with long operating hours or significant load variation, EC speed control and sensors can be used to adjust fan output as demand changes. For simpler spaces with predictable usage patterns, adding an unnecessarily complex control system may offer limited practical benefit.

Fan selection, duct layout, controls, installation, and maintenance all influence the final performance. Matching the fan operating point to the actual system helps improve the indoor environment while keeping ventilation energy use under reasonable control.
