External-Rotor EC Axial Fans for Condensers And Commercial Refrigeration

The condenser fan is a key component in stable heat exchange

In refrigeration systems, compressors, refrigerants and heat exchangers often receive more attention, while the condenser fan is sometimes viewed as a supporting component. In reality, how effectively the condenser rejects heat affects condensing pressure, compressor load, refrigeration efficiency and overall equipment operation.

For air-cooled condensers, axial fans drive air through the finned coil, allowing the airflow to come into sufficient contact with the heat exchange surface. If airflow is insufficient, the condensing temperature may rise, compressor load may increase and system efficiency may decline. Uneven airflow distribution may also lead to local heat exchange deficiencies, affecting the performance of the complete unit.

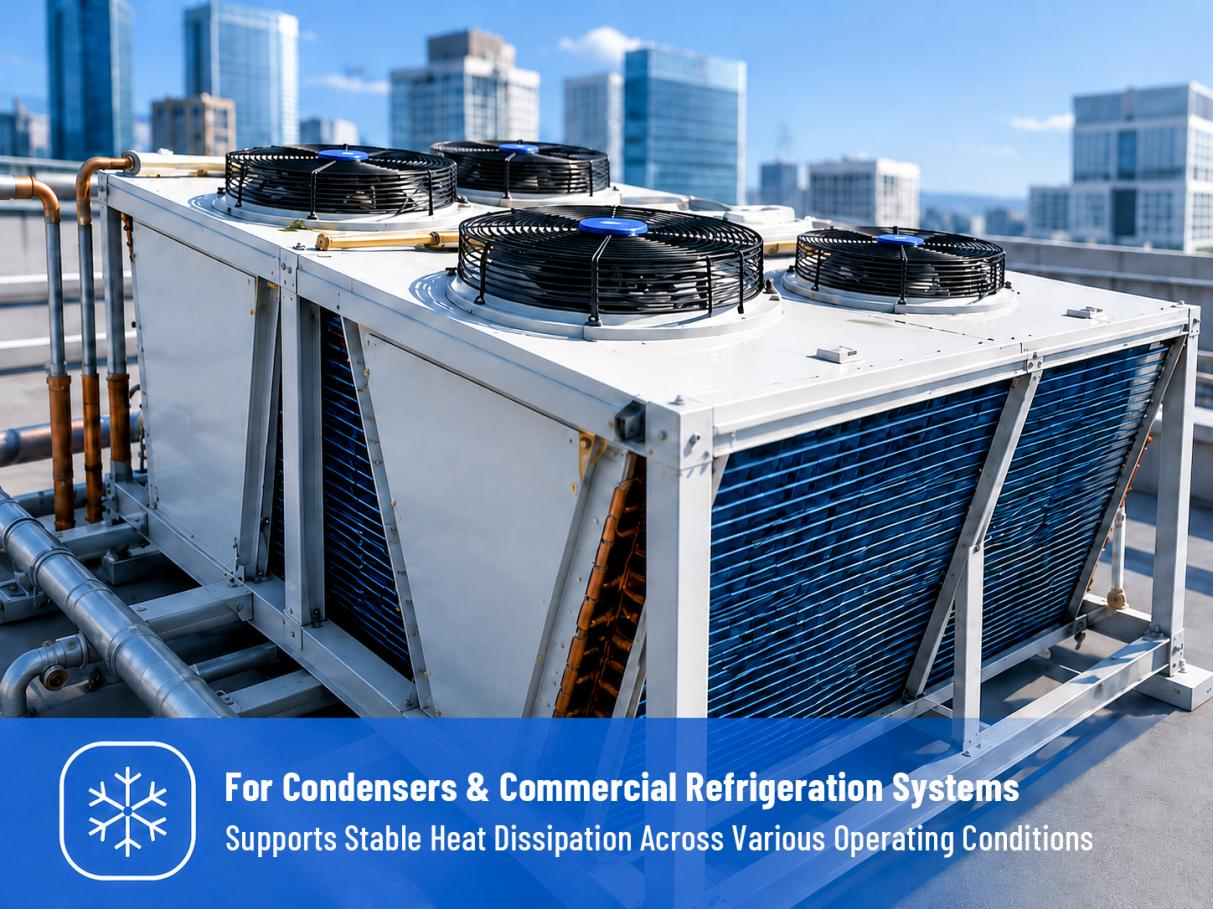

In supermarket refrigerated display cases with condensing units, convenience-store refrigeration equipment, restaurant cold rooms, central kitchens, cold-chain storage facilities and rooftop condensing units, the fan does more than provide airflow. It is a key component in the heat rejection chain.

Why are axial fans commonly used in condensers?

Condenser applications usually require sufficient airflow, compact installation and direct heat exchange. Compared with complex duct systems that require higher static pressure, condensers typically operate in relatively open spaces, where air is guided through the coil to carry heat away.

Axial fans offer a clear airflow direction and a relatively compact structure, making them suitable for installation on the top, side or outer face of condenser coils. For commercial refrigeration equipment, space is often limited. Units may be installed in back-of-house areas, on rooftops, in equipment rooms or outdoors. Therefore, fan size, airflow, noise, protection rating and service accessibility all need to be considered during the design stage.

A suitable axial fan is not only about meeting rated airflow. It should also match the actual system resistance, condenser coil and overall unit structure.

From fixed speed to demand-based speed control

Traditional AC axial fans have a mature structure and are widely used. However, in long-running systems and variable-load conditions, energy use and noise management also need to be considered.

Commercial refrigeration equipment does not always operate under the same load. During the day, higher customer traffic and frequent door openings increase the load on display cases and cold rooms. At night, when ambient temperature falls, cooling demand is relatively lower. If the fan runs at a fixed speed for long periods, it may create unnecessary energy consumption and keep noise continuously present.

The application value of EC axial fans lies in their more flexible speed-control capability. They can adjust speed according to condensing pressure, ambient temperature or system control signals. While meeting heat exchange requirements, they help reduce unnecessary high-speed operation. For commercial refrigeration applications with long operating hours and multiple units, demand-based airflow helps optimize the overall operating mode of the system.

Application value of external-rotor EC design

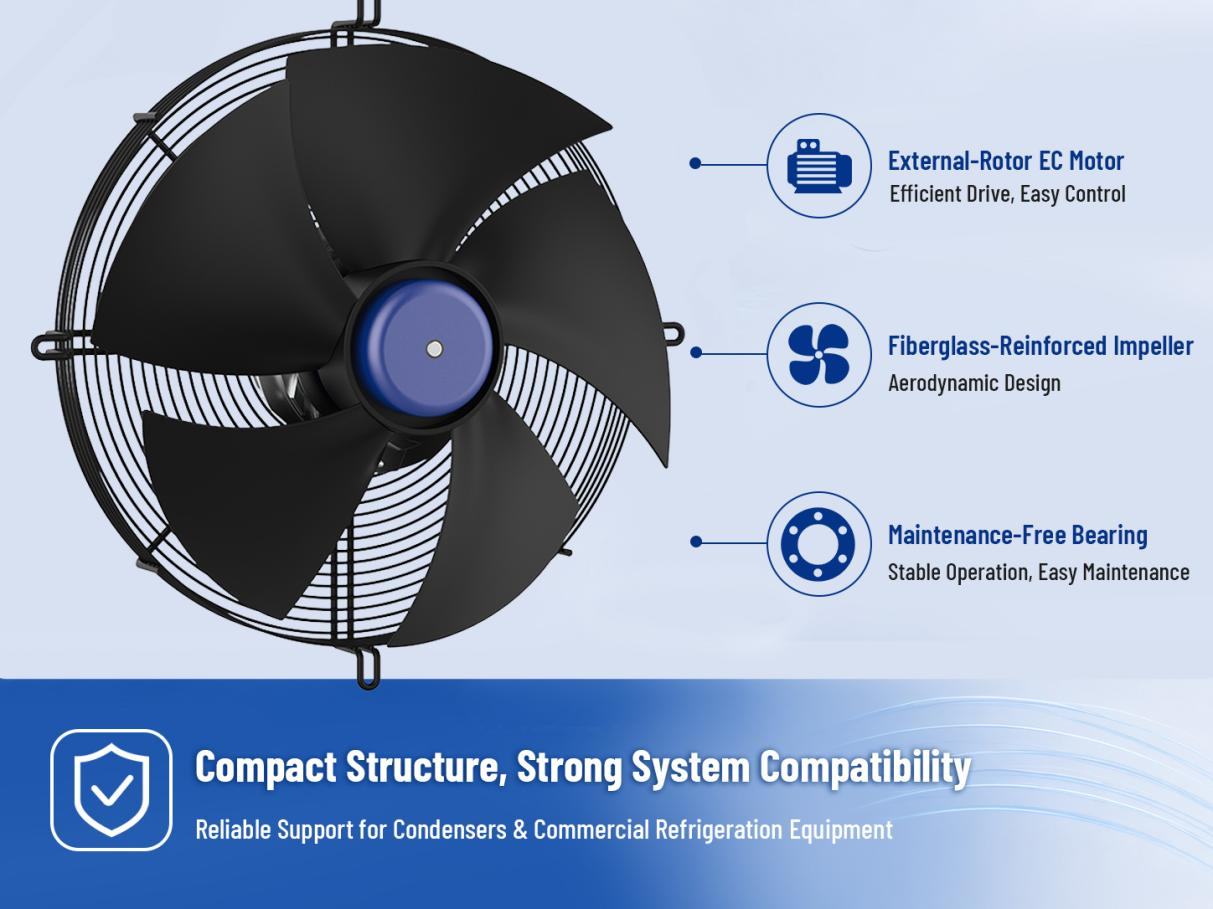

External-rotor EC axial fans integrate the motor, impeller and electronic control unit into one assembly. The compact external-rotor structure helps reduce axial installation space, supports better matching between the impeller and drive system, and allows more flexible arrangement inside the equipment.

When applied to condensers, EC fans can reduce speed under low-load conditions to avoid unnecessary output. In hot weather or under high-load operation, they can provide the required airflow according to system demand, helping the condenser complete the heat rejection process.

For supermarkets, convenience stores and foodservice refrigeration equipment, the power of a single fan may seem limited. But when multiple units operate over long periods, differences in operation gradually become more significant. Whether the fan solution is properly matched will eventually be reflected in refrigeration performance, operating cost and maintenance experience.

Axial fans offer a clear airflow direction and a relatively compact structure, making them suitable for installation on the top, side or outer face of condenser coils. For commercial refrigeration equipment, space is often limited. Units may be installed in back-of-house areas, on rooftops, in equipment rooms or outdoors. Therefore, fan size, airflow, noise, protection rating and service accessibility all need to be considered during the design stage.

A suitable axial fan is not only about meeting rated airflow. It should also match the actual system resistance, condenser coil and overall unit structure.

Noise control is also part of system design

Noise from commercial refrigeration equipment is receiving increasing attention. Condensing units are sometimes installed near sales areas, offices or residential buildings, where nighttime operation can be especially noticeable.

Fan noise does not come from the motor alone. It is also related to blade aerodynamics, inlet and outlet airflow disturbance, mounting structure, dynamic balance and resonance within the complete unit. Even if the fan performs well in standalone testing, poor integration with the condenser structure may lead to increased noise or abnormal vibration in real operating conditions.

For this reason, condenser fan selection should not be based only on airflow and speed. Impeller design, bracket rigidity, running stability, control method and installation conditions should all be included in the evaluation. For refrigeration equipment designed for long-term operation, noise, vibration and service accessibility are also important system design indicators.

Fan selection should not rely on a single parameter

In condenser projects, axial fan selection should be based on the overall operating conditions of the system. In addition to airflow, static pressure and fan diameter, it is also necessary to consider coil resistance, ambient temperature, installation method, noise requirements, protection rating, speed-control interface and service space.

For example, rooftop condensing units need to withstand rain, dust, temperature variation and outdoor air conditions. Supermarket display cases and cold-room equipment place more emphasis on continuous operation, noise control and maintenance convenience. Different applications place different demands on the fan, so the same selection logic cannot simply be applied everywhere.

For equipment manufacturers, a more appropriate approach is to evaluate the fan as part of the complete system, rather than treating it as a standard component at the final purchasing stage.

Blauberg: fan solutions for system integration

In condenser and commercial refrigeration applications, Blauberg external-rotor EC axial fans can be considered as part of the complete aerodynamic solution. They are not simply replacements for conventional fans. Instead, they provide an integrated approach around the motor, impeller, control method and mounting structure to support refrigeration equipment design.

For condenser manufacturers, cold-chain equipment suppliers and commercial refrigeration system integrators, airflow output, speed control, noise management and long-term operating performance all need to be evaluated together under real working conditions. As energy requirements continue to rise and users pay more attention to operating experience, fan selection has become an important part of overall unit design.

Conclusion: fan selection is part of complete system design

Commercial refrigeration is moving beyond cooling capacity alone toward a more balanced focus on energy use, noise, control and maintenance. The external-rotor EC axial fan on a condenser may appear to be only one component, but it affects how smoothly heat is rejected, as well as compressor load, system energy use and user experience.

For condensers and commercial refrigeration equipment, choosing the right EC axial fan is more than a component replacement. It is a system-level decision for long-term operation and overall equipment compatibility.
