Cooling EV Charging Stations: How EC Axial Fans Help Keep Fast Chargers Running Reliably

As charging gets faster, thermal management must keep pace

The EV charging experience is moving from simply “having a charger available” to being fast, stable and continuously accessible. At highway service areas, urban public charging stations, commercial complexes and industrial park car parks, fast chargers are no longer just charging interfaces. They are high-power electrical systems designed for long operating hours.

As charging power increases, heat is generated by power modules, rectifier units, control boards, busbars, cables and connection terminals. If the internal temperature of the equipment is not controlled in time, the charger may reduce output power, trigger alarms or even shut down. This affects the user’s charging experience and can also impact equipment turnover and site revenue for operators.

For EV fast chargers, the thermal management system is not an auxiliary feature. It is a fundamental part of stable operation.

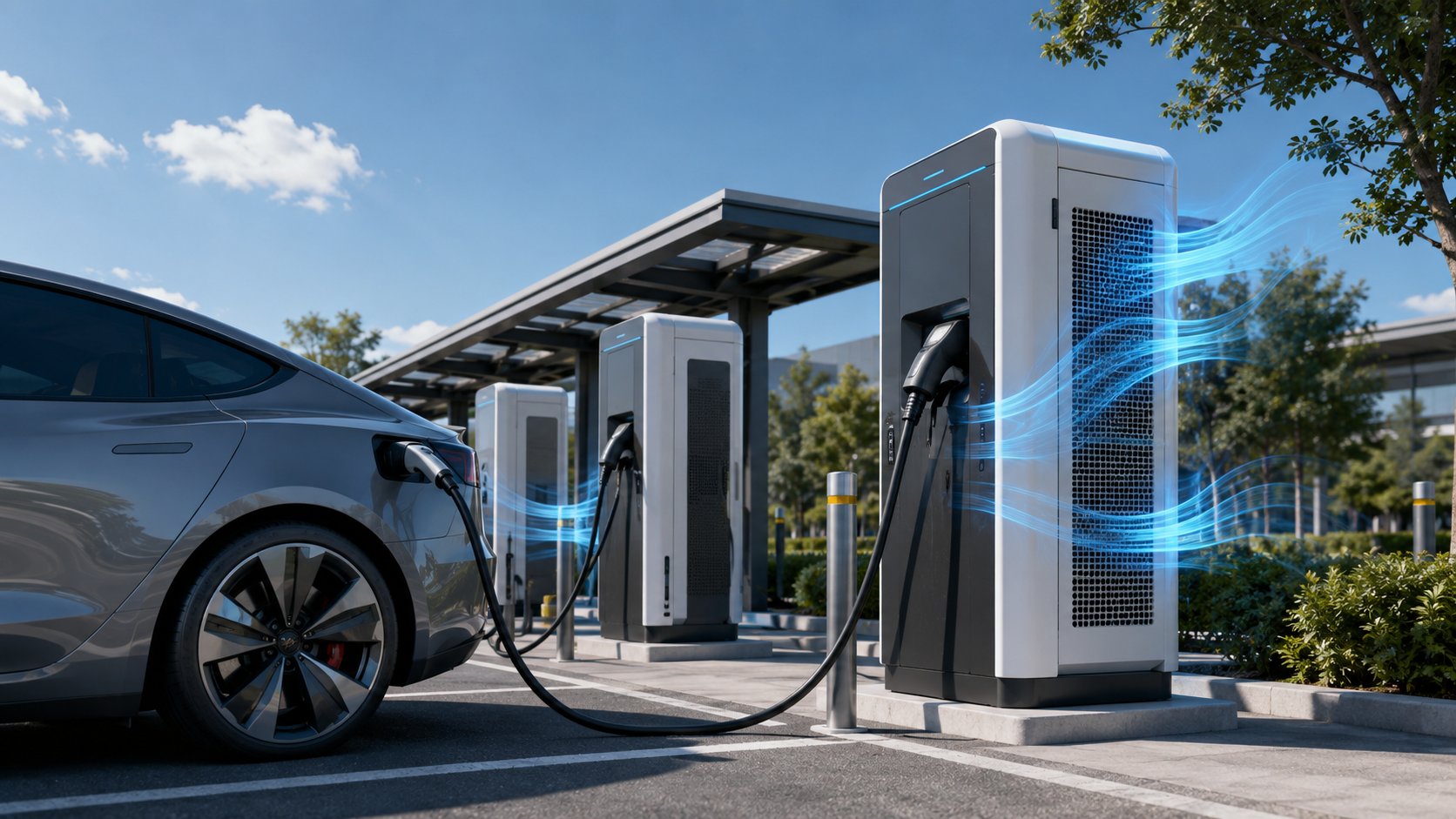

Outdoor Fast-Charging Station Application

Inside the cabinet is where heat really accumulates

From the outside, a fast charger may look clean and compact. But the real thermal pressure is inside the cabinet. Power modules can create local hot spots during long operation, control components require a relatively stable temperature environment, and cables and terminals should not remain under high-temperature conditions for extended periods.

The situation becomes more demanding because most fast chargers are installed outdoors. Summer sun exposure, rain, dust, day-night temperature differences, winter cold and frequent site usage all make the operating environment more complex. In hot weather or during holiday charging peaks, fast chargers may remain under relatively high load for long periods. At such times, the response speed and continuous capacity of the cooling system become especially important.

Whether the air path is smooth, whether intake and exhaust are properly arranged, and whether the fan matches the air-side resistance will directly influence the overall operating performance of the equipment.

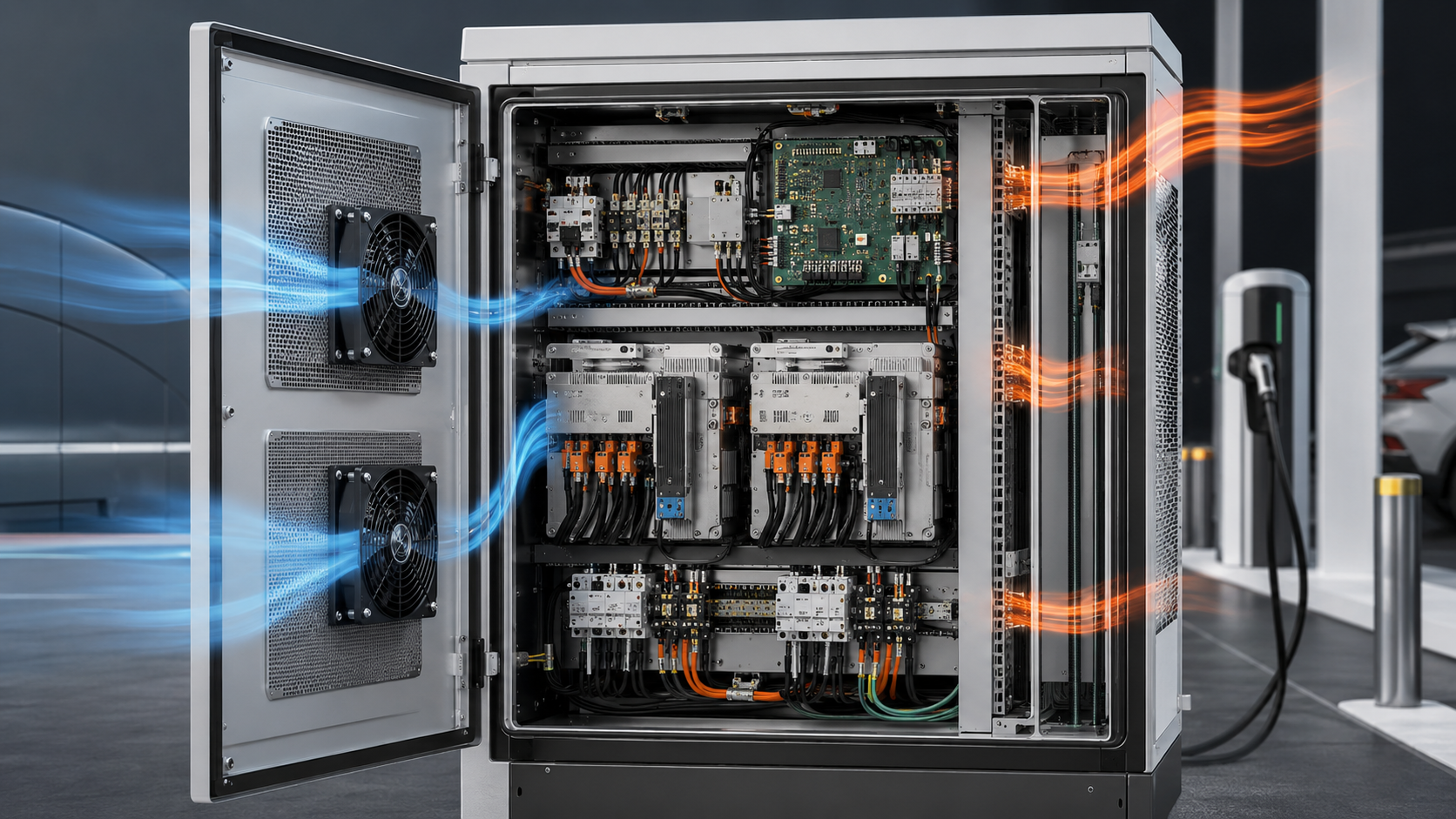

Cabinet Internal Cooling & Airflow Diagram

The fan is not a supporting role, but a key actuator in thermal management

In the cooling system of a fast charger, the fan is responsible for continuously carrying heat away. In some liquid-cooled fast-charging systems, the fan can also work with a radiator or heat exchanger to release heat absorbed by the liquid cooling loop into the ambient air.

The role of the fan is not simply to “blow air.” It must provide suitable airflow within a limited space, overcome resistance from filters, grilles, heat exchangers and internal structures, while also taking noise, energy use, service life and maintenance convenience into account.

For high-power charging equipment, fan selection can no longer be based only on size and airflow. The fan is a key component in the thermal management system, directly affecting heat dissipation and the equipment’s continuous operation under different seasons, load levels and environmental conditions.

Axial fans: suitable for high airflow in compact spaces

Axial fans move air along the axis of the fan. With a relatively compact structure, they can provide high airflow within a limited installation depth. This makes them suitable for cabinet intake and exhaust, heat exchanger airflow and local heat removal in EV charging equipment.

The internal space of a fast charger is usually limited. Power modules, wiring, filters, sheet-metal structures and control units all take up space. Axial fans can be arranged on the intake side, exhaust side or near the heat exchanger according to the equipment structure, helping meet thermal requirements while reducing the impact on the overall cabinet layout.

However, axial fan selection is not simply a matter of “the larger the airflow, the better.” Practical selection should consider system resistance, installation direction, filter dust-loading margin, noise requirements and maintenance method. Only when the fan performance curve matches the actual airflow path can the cooling effect remain more consistent.

Of course, in structures with higher resistance or more complex air paths, centrifugal fans or other fan types may also be required. The final choice should always be based on the complete air-path design and thermal requirements of the equipment.

EC technology helps cooling respond to load changes

The operating state of a fast charger is not fixed. It may be in standby or under low load at night, and frequently used during the day. Highway service areas, commercial fast-charging stations and fleet charging sites may also experience extended periods of high-load operation.

The advantage of EC axial fans lies in their speed-control capability. When the equipment is under low load, the fan can reduce speed to limit unnecessary energy use and noise. When temperature rises or charging power increases, the fan can increase speed to enhance airflow and help remove heat in time.

This demand-based operating mode is well suited to fast-charging applications with significant load changes. It allows the cooling system to move from fixed output to dynamic response, helping balance heat dissipation, noise and operating energy use.

Outdoor applications place higher demands on fan reliability

Fast chargers are installed outdoors for long periods, so the fan faces a more complex environment than in typical indoor equipment. High temperatures, low temperatures, rain, dust, vibration, salt mist and voltage fluctuations can all affect long-term fan operation.

Therefore, fan selection for fast chargers should not focus only on airflow and price. Protection rating, insulation performance, bearing life, corrosion resistance, noise performance, electromagnetic compatibility and control interface should all be considered. For public charging stations, the downtime of one charger affects not only a single user, but also the service capacity of the entire site.

A reliable fan solution should be considered together with the cabinet structure, control strategy and maintenance approach from the design stage, rather than being adjusted reactively after temperature issues appear.

Blauberg: aerodynamic support for new energy equipment

As new energy infrastructure continues to expand, fan manufacturers are expected to provide more than standard components. They also need to understand equipment manufacturers’ requirements for efficiency, noise, structural integration and long-term reliability.

Blauberg Motoren offers EC, AC and DC motors as well as a range of fan solutions, including axial fans, centrifugal fans, cross-flow fans and duct fans. For applications such as EV chargers, energy storage cabinets, telecom cabinets, HVAC equipment and industrial systems, Blauberg can provide corresponding aerodynamic product options based on different structures and operating conditions.

In fast-charger cooling applications, EC axial fans can work together with cabinet air paths, heat exchangers and temperature control systems to help maintain a more balanced thermal environment under high temperature, high load and long operating cycles. They may not be the most visible part of the equipment, but they support reliable operation from a critical position.

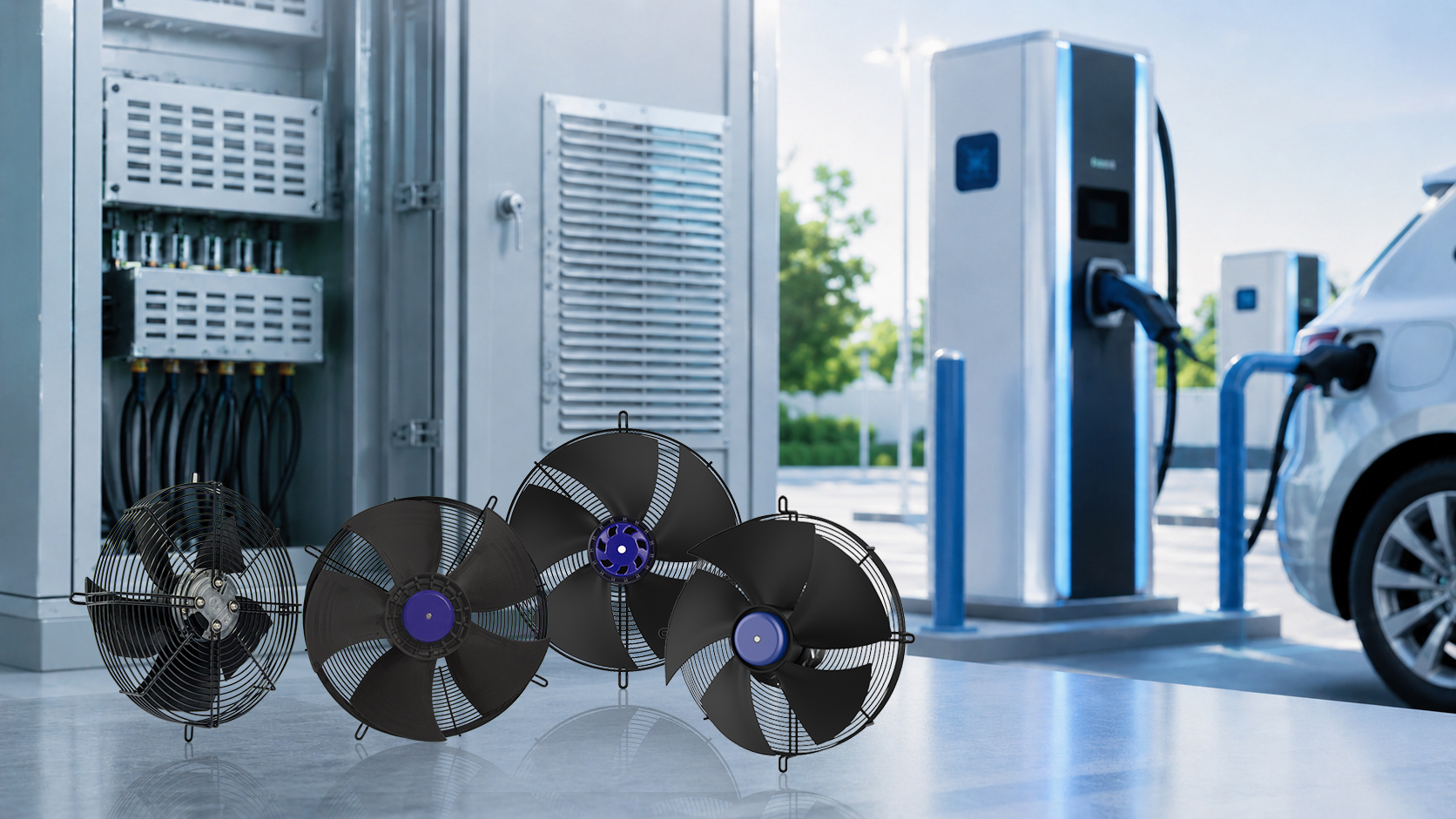

Blauberg Axial Fan Product Showcase

Fan selection should focus on system matching

A reliable thermal management solution for fast chargers should bring the fan into the complete system design from the beginning.

Is the air intake positioned to avoid hot-air recirculation?

After dust builds up on the filter, is there still enough airflow margin?

Does the heat exchanger resistance match the fan performance?

Are there airflow dead zones around the power modules?

Is the fan easy to install and maintain?

Can the control logic respond quickly to temperature changes?

These questions may seem like details, but they determine how the charger performs in real operating environments. The earlier the fan is involved in system design, the easier it is to optimize the equipment structure. The clearer the cooling path, the more stable the later operation can be.

Conclusion: fast charging is the experience; stable operation is the capability

Fast-charging networks are expanding rapidly. The number of chargers continues to grow, charging power keeps increasing, and users expect a better charging experience.

In this competition, the cooling system is often hidden inside the cabinet, but it determines whether the equipment can stay continuously online. With controllable and continuous airflow, EC axial fans help fast chargers respond to high temperatures, heavy loads and long operating hours.

Charging fast is the experience.

Staying stable is the capability.
