Axial Fans for Dry Coolers & Cooling Towers: Efficiency in Harsh Outdoor Conditions

Dry coolers and cooling towers are typically installed outdoors on rooftops, equipment platforms, or at industrial facilities

Outdoor Cooling Equipment Places Greater Demands on Fan Performance

Dry coolers and cooling towers play an important role in rejecting excess heat from data centers, industrial refrigeration systems, energy centers, process cooling applications, and large commercial buildings.

A dry cooler uses ambient air flowing across a finned heat exchanger to cool the circulating fluid inside the system. A cooling tower removes heat through the combined movement of air and heat exchange with circulating water. Although the two types of equipment differ in structure and operating principle, both depend on continuous and reliable airflow. Axial fans provide the driving force required to move air through the heat exchange area.

Unlike ventilation equipment installed indoors, dry coolers and cooling towers are typically located on rooftops, equipment platforms, or open outdoor sites. Their fans may be exposed to high summer temperatures, freezing winter conditions, rain, humidity, dust, crosswinds, and prolonged sunlight. Some industrial applications may also involve corrosive atmospheres, frequent start-stop cycles, or continuous year-round operation.

For this reason, fan selection should not be based on rated airflow alone. The ability to operate reliably under changing environmental conditions, while working effectively with the heat exchanger, fan housing, and control system, is often more important over the equipment’s service life.

Why Axial Fans Are Commonly Used in Dry Coolers and Cooling Towers

Dry coolers and cooling towers generally require high airflow volumes. Most of the system resistance comes from finned coils, fill media, louvers, protective guards, and the internal structure of the equipment.

Axial fans move air in a direction parallel to the fan shaft. Their compact construction, shallow installation depth, and ability to move large volumes of air make them well suited for installation above or beside heat exchangers, as well as within modular fan housings.

For larger cooling systems that use multiple fans in parallel, axial fan configurations also support modular equipment design and more convenient maintenance.

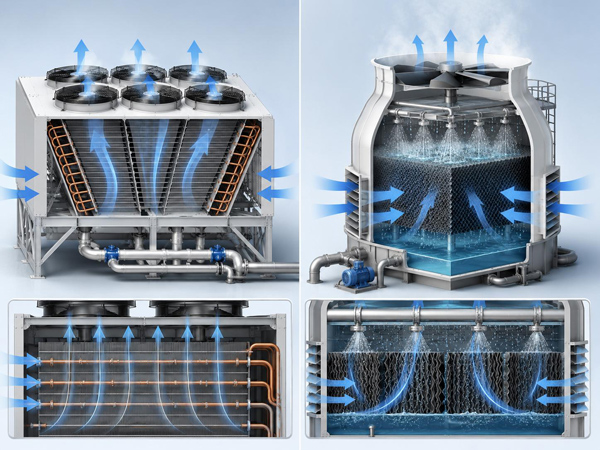

Schematic of airflow paths and axial fan operation in dry coolers and cooling towers

However, selecting a suitable fan involves more than comparing catalogue performance data.

The distance between the fan and the heat exchanger, the clearance between the impeller and the fan housing, restrictions around the air inlet, and the possibility of exhaust air recirculation can all affect actual airflow and heat rejection performance.

If airflow is concentrated in only part of the heat exchanger, some sections of the coil or fill media may not be used effectively. If warm discharge air is drawn back into the equipment, cooling capacity may decline even when the fan continues to operate at a relatively high speed.

The fan, housing, inlet grille, and heat exchanger should therefore be considered as one complete air-moving system. Well-designed airflow distribution is often more valuable than simply increasing motor power.

More Airflow Is Not Always Better

Cooling demand in dry coolers and cooling towers is rarely constant.

Outdoor temperature, the number of operating units, process heat loads, supply and return water temperatures, and system setpoints can all change throughout the day and across different seasons.

During hot summer conditions, the equipment may require a higher airflow rate. In cooler weather or during periods of reduced demand, operating every fan continuously at full speed can result in unnecessary energy use and higher noise levels.

If the fan is undersized, the heat exchanger may not receive enough airflow. As a result, the circulating fluid temperature may rise and the cooling system may operate under greater load.

An oversized fan, on the other hand, may increase initial cost, operating noise, and energy consumption without providing a meaningful improvement in system performance.

A more effective approach is to determine the fan duty point according to the resistance of the heat exchanger, the required airflow, and the expected operating range. Appropriate allowances should also be made for high ambient temperatures, dirt accumulation, crosswinds, and other adverse conditions.

The objective is not to select the fan with the highest airflow rating, but to select one that matches the actual system requirements.

EC Speed Control Allows Cooling Capacity to Follow Demand

Traditional fixed-speed fans often regulate cooling capacity through on-off operation or staged fan control. When system demand moves between control stages, this approach may lead to temperature fluctuations, frequent switching, and noticeable changes in noise.

EC axial fans can be integrated with control systems to adjust operation according to cooling demand

EC fans allow speed to be adjusted continuously according to temperature, pressure, or cooling load.

At lower loads, the fan speed can be reduced to limit unnecessary energy consumption. As ambient temperature or system demand increases, airflow can be raised gradually so that cooling output remains aligned with actual operating requirements.

In dry coolers and cooling towers equipped with multiple fans, EC technology also enables more flexible control strategies.

Several fans can operate simultaneously at reduced speed to provide more even airflow across the heat exchanger. Fans can also be controlled by section or operating zone according to changes in load.

Compared with running only a small number of fans at high speed, this approach can help reduce local airflow variation and limit the mechanical and electrical stress associated with frequent start-stop operation.

Where communication interfaces are available, the fans can also be integrated into the equipment control system. This allows fan speed settings, operating status, and fault information to be monitored centrally, providing useful data for maintenance and system management.

Outdoor Applications Require Greater Attention to Protection and Reliability

Fan selection for harsh outdoor environments should begin with the actual installation conditions.

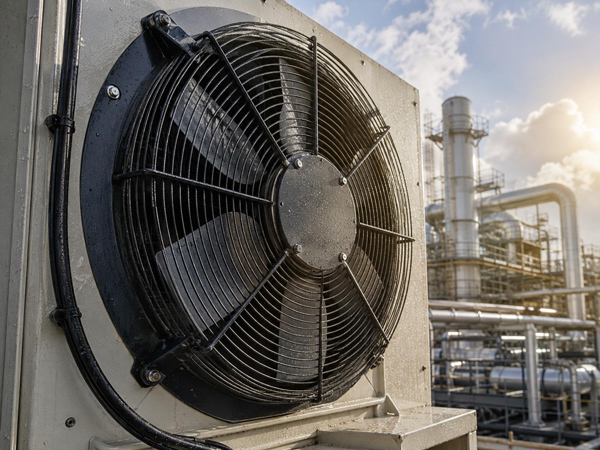

Outdoor axial fans must withstand rain, humidity, dust, and temperature fluctuations

In hot climates, the permitted ambient temperature of the motor and electronic components must be checked carefully. In cold regions, low-temperature starting, snow accumulation, and icing should be considered.

For coastal or high-humidity locations, attention should be given to the corrosion resistance of the impeller, guard, fasteners, motor housing, and surrounding structural components.

Rainwater and dust are equally important considerations. Fans and electrical connections should provide a level of protection appropriate for the installation environment. Wiring, controllers, and sensors should also be positioned to avoid long-term exposure to standing water or contamination.

For equipment intended to operate continuously throughout the year, bearing life, motor protection, vibration monitoring, and maintenance access all influence long-term reliability.

A fan that is difficult to remove or inspect may increase downtime during cleaning, servicing, or replacement, even when its initial performance is suitable.

Multi-fan systems should also include adequate service access and provisions for isolating individual fans, allowing maintenance work to be carried out without unnecessarily shutting down the complete cooling system.

From Individual Fan Performance to Overall System Efficiency

A fan solution for a dry cooler or cooling tower should not be assessed only by its airflow, power input, or sound level at a single rated operating point.

Under real operating conditions, the equipment may be affected by heat exchanger fouling, changes in ambient temperature, natural wind, and fluctuating cooling loads.

The suitability of a fan solution can only be evaluated properly when fan performance, airflow distribution, control strategy, and maintenance conditions are considered together.

During the design stage, engineers can select the appropriate impeller size, installation arrangement, and control method according to the resistance of the heat exchanger and the structure of the equipment.

During operation, fan speed can be adjusted according to fluid temperature and system load, reducing the need for prolonged full-speed operation.

Fan manufacturers such as Blauberg continue to develop solutions around axial impeller design, EC drive technology, and communication-based control, providing more flexible options for dry coolers, cooling towers, and other heat rejection equipment.

Dry coolers and cooling towers may operate behind the scenes, but they directly influence the efficiency of primary equipment, process stability, and long-term operating costs.

In environments affected by heat, cold, humidity, and dust, the role of the axial fan goes beyond simply moving air. It must provide the airflow required by the heat exchanger consistently and reliably over time.

By considering aerodynamic matching, demand-based speed control, outdoor protection, and maintenance requirements as part of one complete system, cooling equipment can operate more reliably and efficiently under challenging outdoor conditions.
